Description

Moody 336 – 1994 - Sensibly priced at £44,500

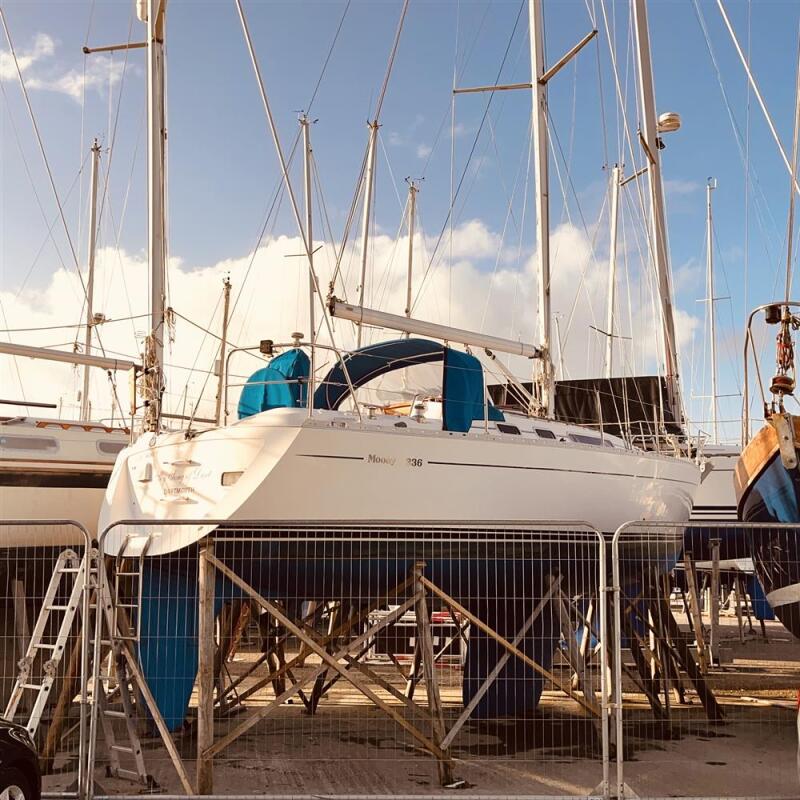

Designed by Bill Dixon and built by Marine Projects (Plymouth) under the Moody brand the Moody 336 was a highly successful design with around 200 built. A comfortable and reliable cruising boat combined with excellent sailing characteristics; the Moody 336 model is noted for being a very capable performer in around the cans racing with many class wins at regattas to this models credit. The design offers comfortable accommodation for up to 6 and boasts a large master cabin aft and huge dedicated heads compartment with a separate shower area.

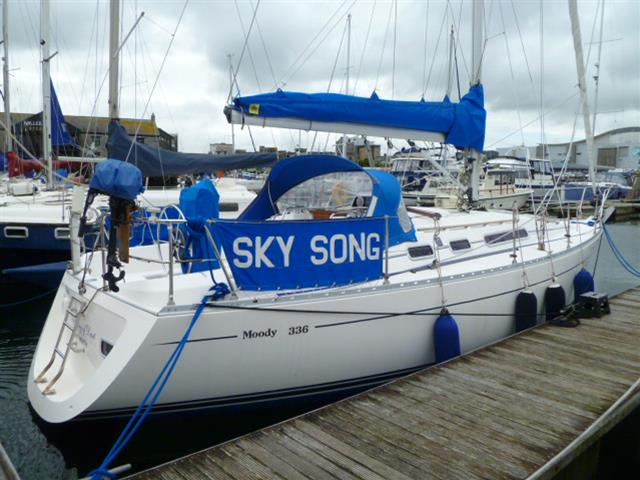

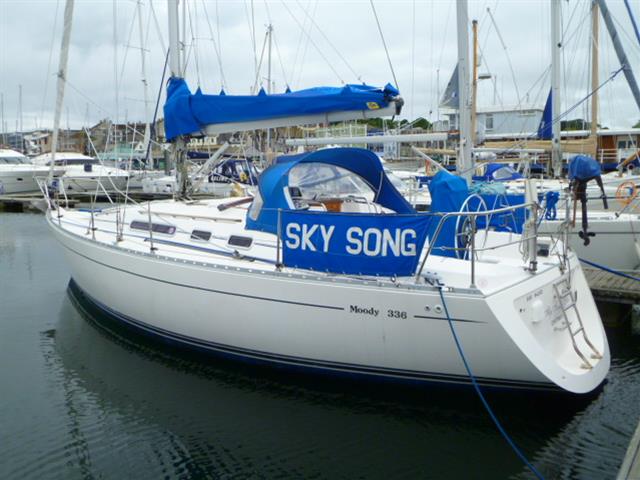

This Moody 336 Mk II, ‘Sky Song of Dart’ is a lightly used example of the class with only 3 owners from new (delivered in 1994), and offered with a cruising inventory which includes:
Recent Raymarine plotter, Autopilot system & VHF.
Volvo Penta MD2030 28hp, 3-cylinder indirectly cooled marine diesel.
PSS dripless stern gland seal.

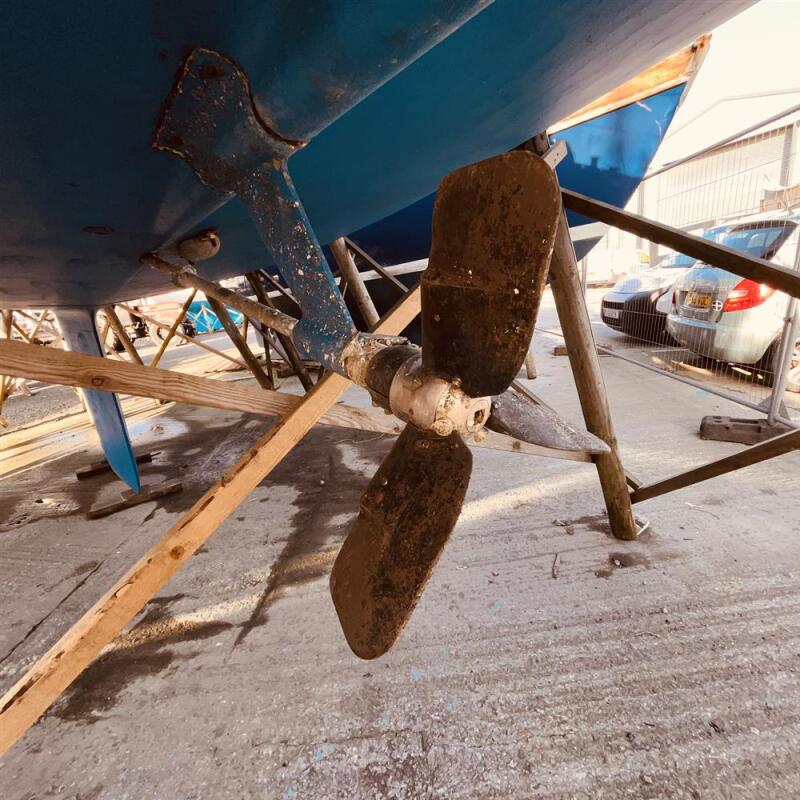

Kiwi 3-bladed, feathering propeller with rope cutter,
Pressurised hot and cold water,
Electric anchor windlass with wireless remote,
Fully battened mainsail with ‘Stackpack’ and lazy jack system,
Sprayhood.
LED overhead lighting.

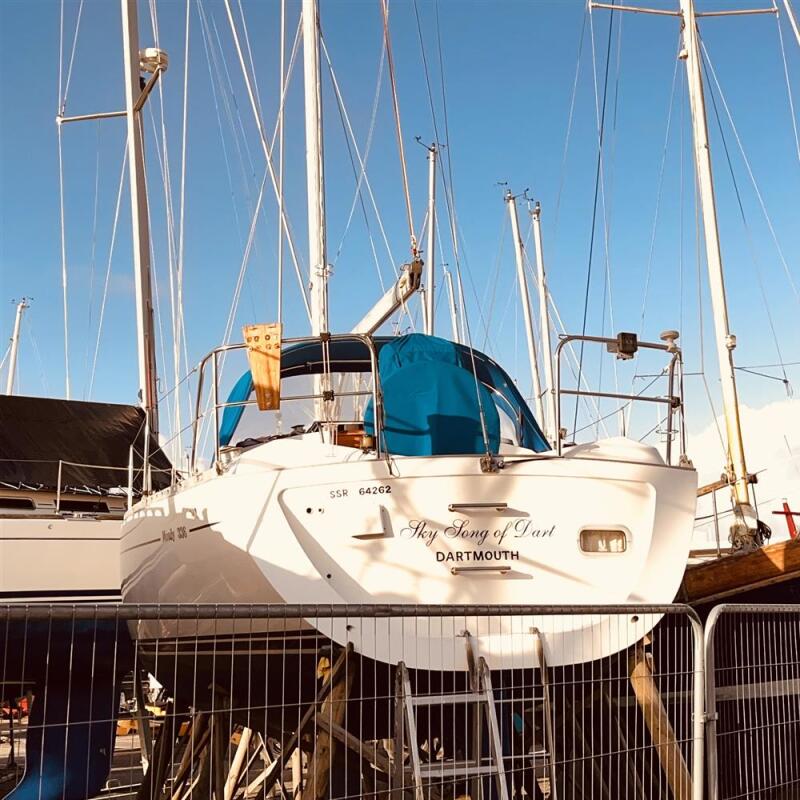

‘Sky Song of Dart’ is a notably un-tainted, clean example of what is a really successful design, with significant money having been spent recently in modern upgrades and good fundamental maintenance work steadily carried out by the current owners throughout their 5 year ownership.

Many more photos are available, contact us for details

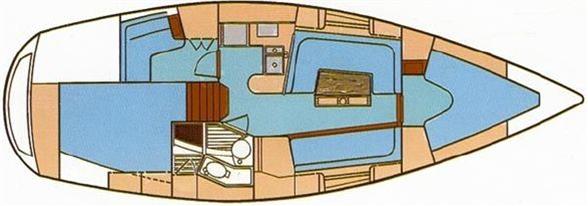

Accommodation
The Moody 336 offers six berths across two separate sleeping cabins plus the saloon berths. ‘Sky Song of Dart’s accommodation is fitted with re-upholstered, mid-blue cushions throughout to replace the original velour fabric in white with red pin stripe. She was fitted with the optional teak and holly finished sole boards in the main saloon and these have recently been stripped and re-finished. Being of the face-lifted, Mk II version, the galley locker doors are of teak wood finish and the saloon is simply and tastefully provided with stainless steel fiddled book shelves. The M336 featured a far more generous heads compartment than her contemporaries and a remarkably accommodating galley, while the indulgent and ‘ground-breaking’ aft cabin shone a light on the future as to how aft cabins would evolve.

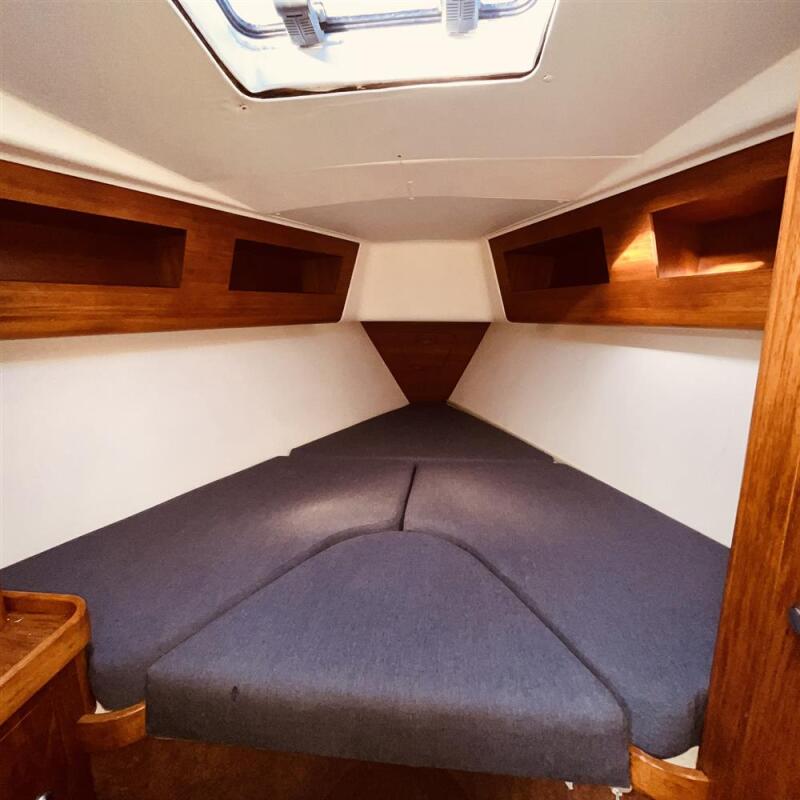

Forecabin: 2 berths, laid out in a generally ‘V’- form, but with a notably curved shape to the ‘V’ to offer more floor space. The berths are set well forward in the cabin space, with lockers abaft the head of the berths; deep hanging to starboard and two individual shelved lockers to port. Two deeply fiddled cave lockers are fitted above each berth and are suspended beneath the side decks running either side of the cabin. Access to the chain locker, through a hinged trap at the foot end of the berths. Usefully, all the space beneath the berths is accessible for bulk stowage as a result of the water tanks being located beneath the settee berths, in the main saloon. Aft-facing deck hatch over (with ventilator) for light and ventilation. Single gang 240V AC, 13A socket. 1 kg dry powder fire extinguisher mounted behind the door.

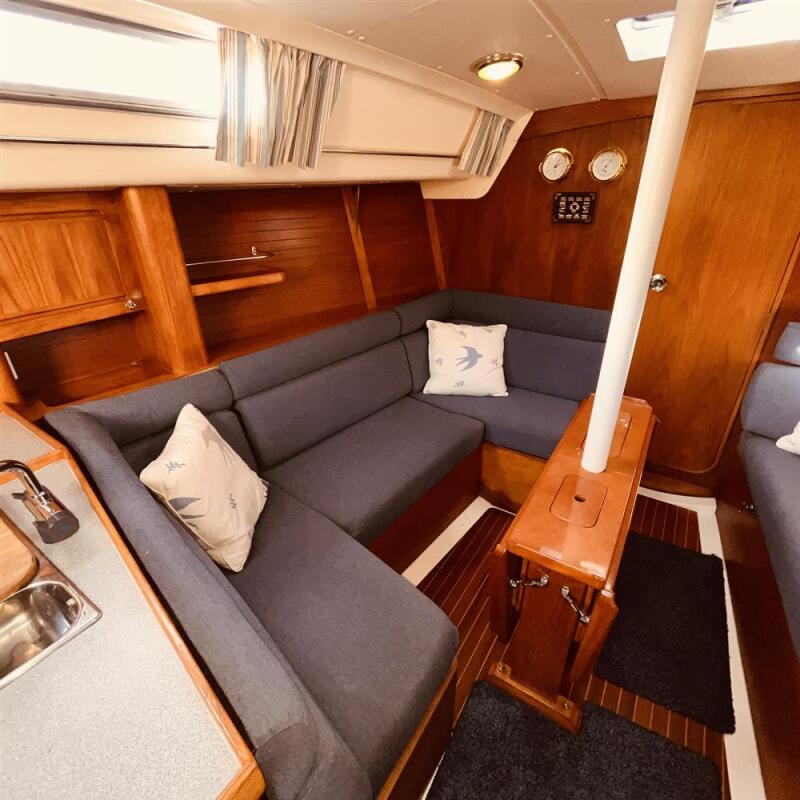

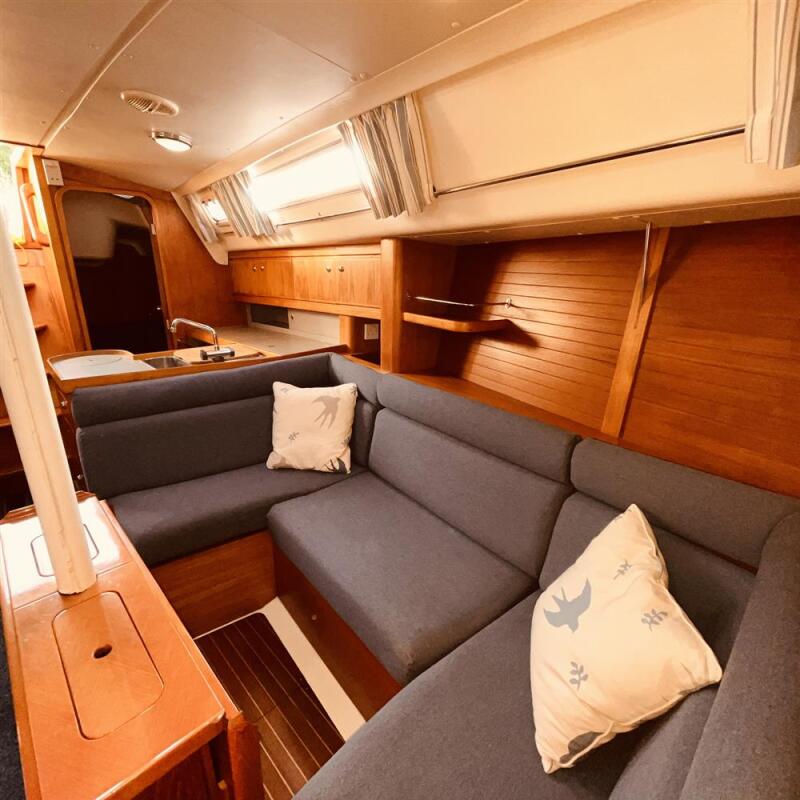

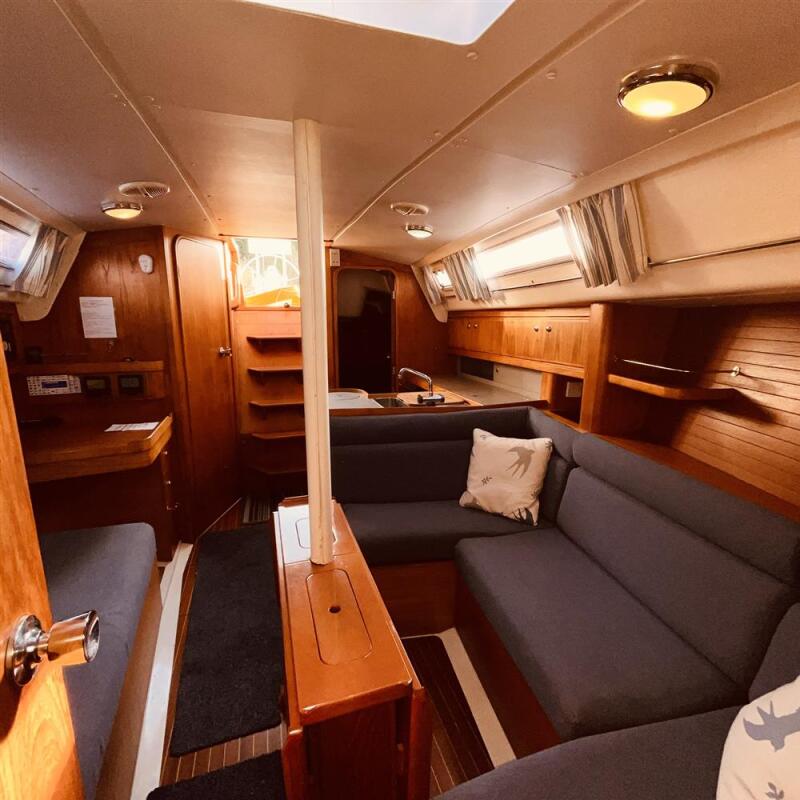

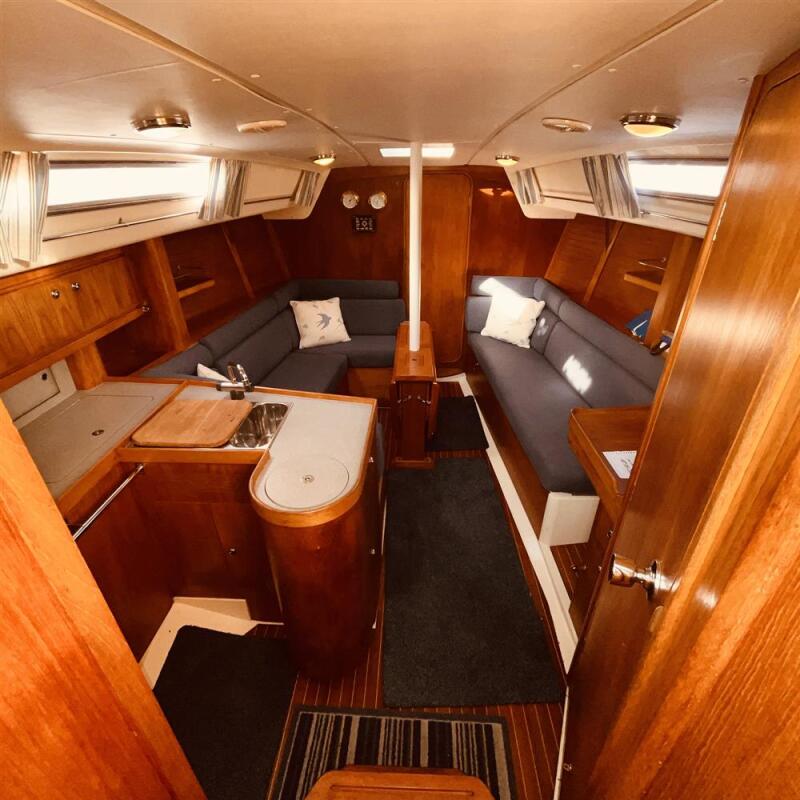

Saloon: Laid out with U-shaped seating to port about a centre-line table and a single settee berth to starboard. Although the freshwater tanks are located beneath the seating, there is still some bulk stowage afforded by the returns to the port side’s seating. Moody’s usual cave lockers behind the seating’s backrests. Light and ventilation is provided by two fixed windows to the coach roof, combining with a hatch located above the saloon’s table. LED bulbs replace the filament bulbs in the overhead lighting. Flooring of teak and holly veneered plywood panels that have been stripped and re-finished nicely this last winter. 1 kg dry powder fire extinguisher at the chart table. A CD/radio player is fitted, with overhead stereo speakers mounted in the overhead panels.

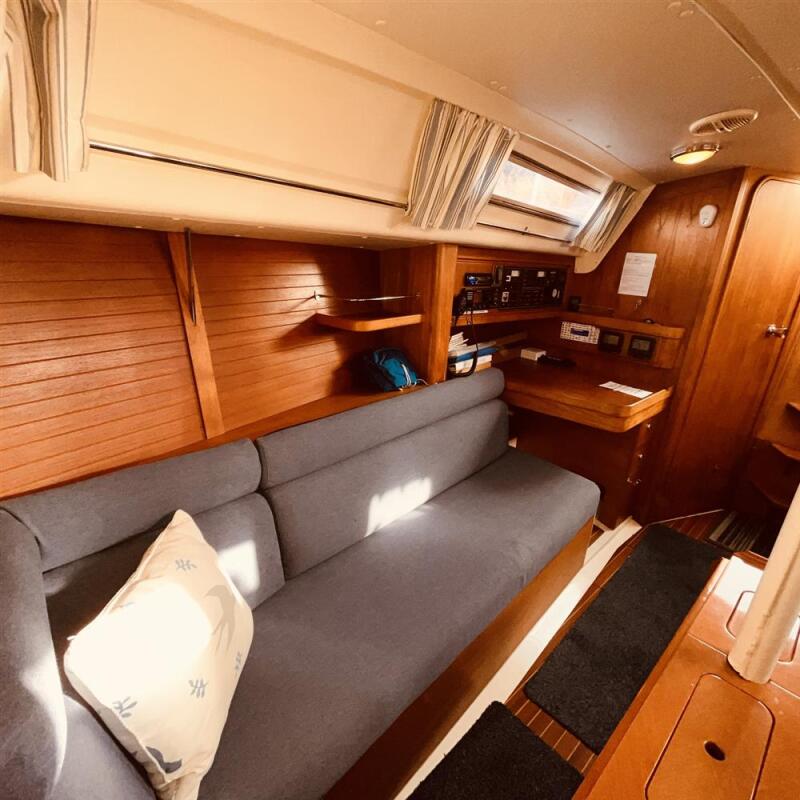

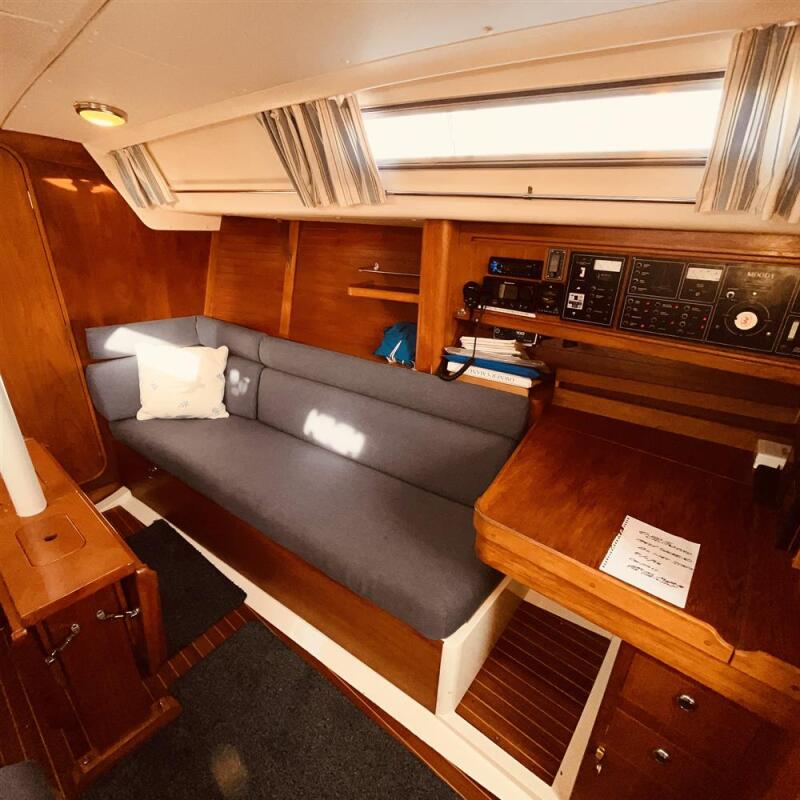

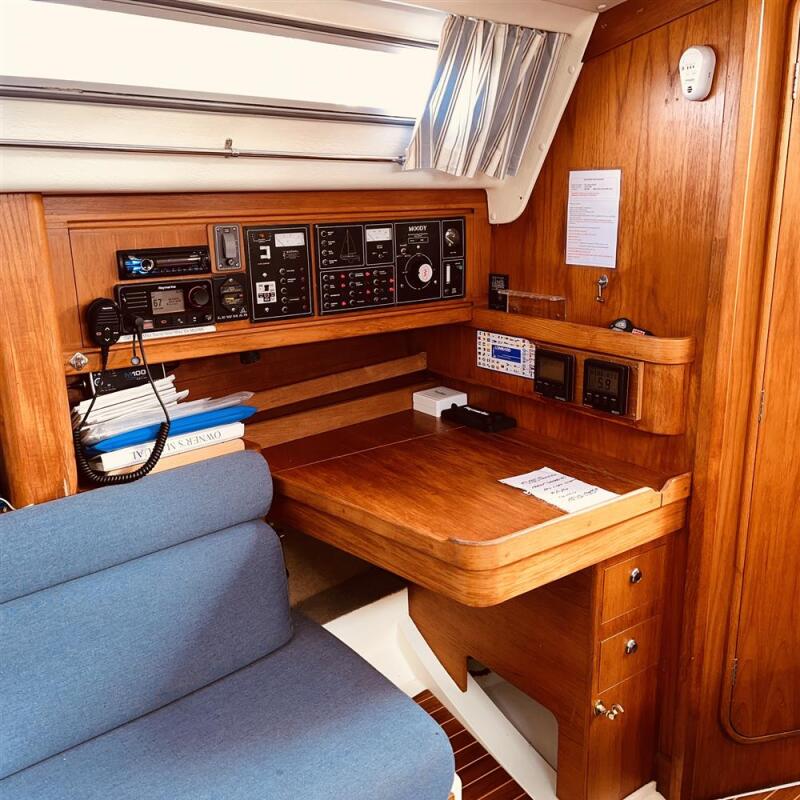

Chart Table: This is fitted to starboard side, facing aft and sat-to by sitting on the aft end of the starboard settee berth, with the main 12V DC distribution board mounted alongside the Navigator’s left shoulder. There are storage drawers within the chart table’s pedestal and additional, fiddled small-item stowage has been provided out-board of the table itself.

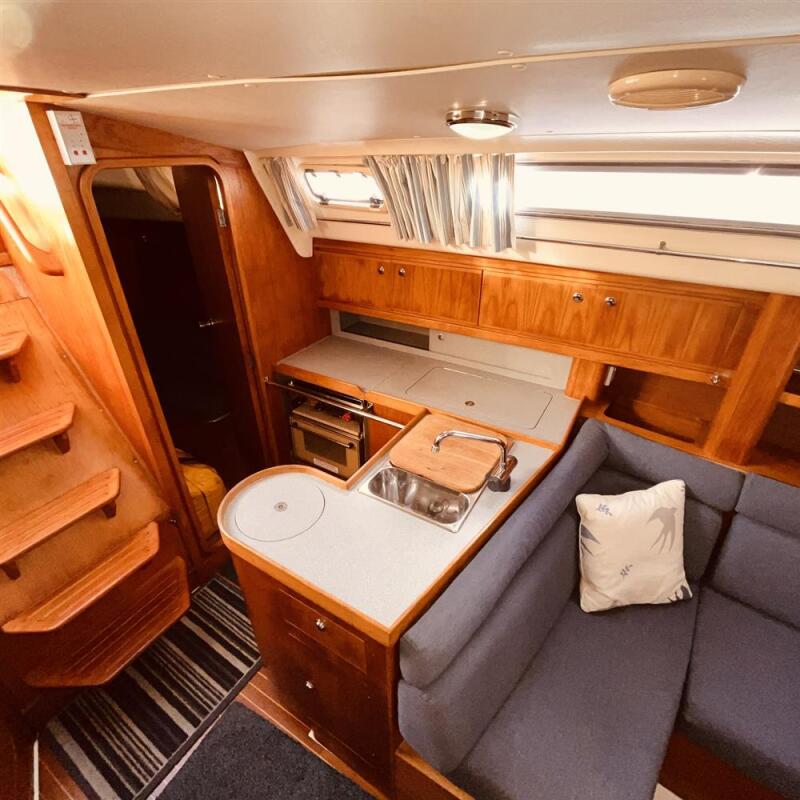

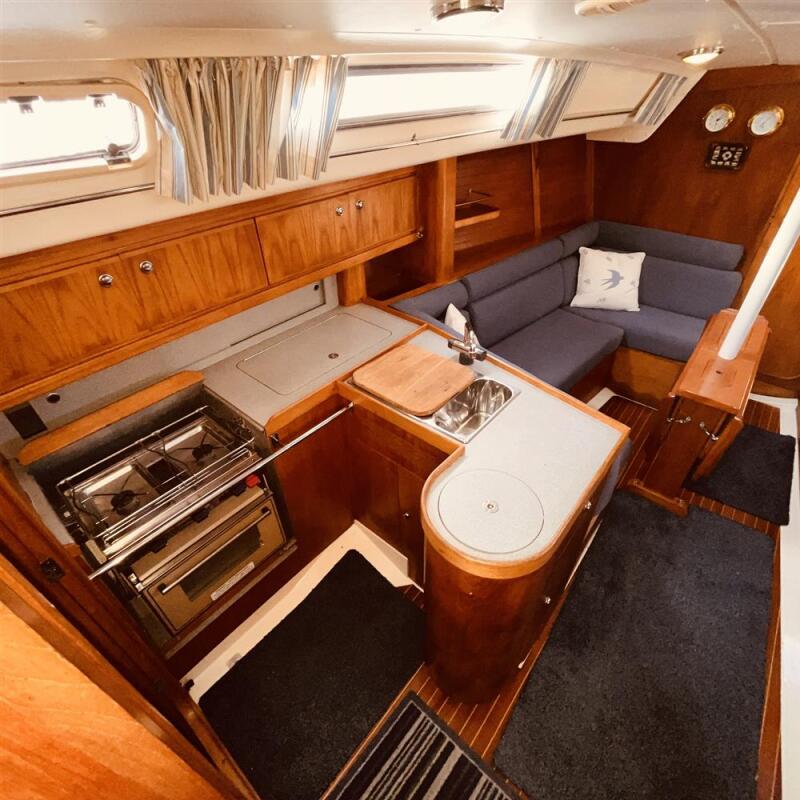

Galley: basically, of L-shaped layout but featuring a curved return to the ‘L’s inboard return which notably accommodates a top-access and lift-out rubbish bin and access from the centreline of the boat to a large, shelved locker and cutlery drawer in addition to the usual shelved locker beneath the sinks. Above, and outboard, four locker doors enclose dedicated crockery storage and storage for cooking staples, while below these lockers, two sliding doors close more storage at work surface level. A top-accessed fridge is relatively large for a design of the late eighties and features an internal shelf and ice-making provision. The ‘Atlantic’ cooker by Plastimo will be the original and has two hob burners, grill and oven. The gas installation has been regularly inspected and certified over the last five year period, in the current ownership. A removable panel supplements the rest of the galley work surface when not using the cooker.

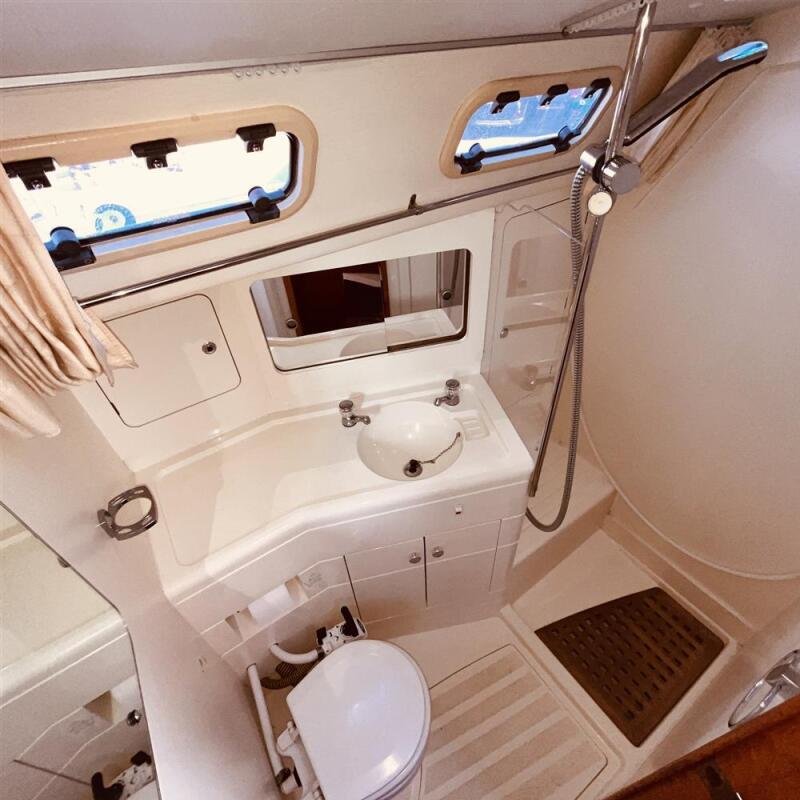

Heads Compartment: Spacious and conveniently located to starboard of the foot of the companionway steps, the M336’s head’s compartment has always been a major feature of the design. Generous of space, the sub-moulding features a dedicated, separated shower area provided with a mixer tap and teak grated shower sump that is drained overboard by 12V pump, while the handbasin is incorporated within the cleverly ‘cranked’ top over a conventional locker space, matched by an under-deck locker above the washbasin. The result is of more stowage space than would otherwise have been achieved and a nicely styled moulding. A marine-flushing toilet by Jabsco is manual and flushes directly overboard. Unusually good light and ventilation levels are achieved by the provision of two opening portlights to the coach roof side, combining with and a hatch above the showering area.

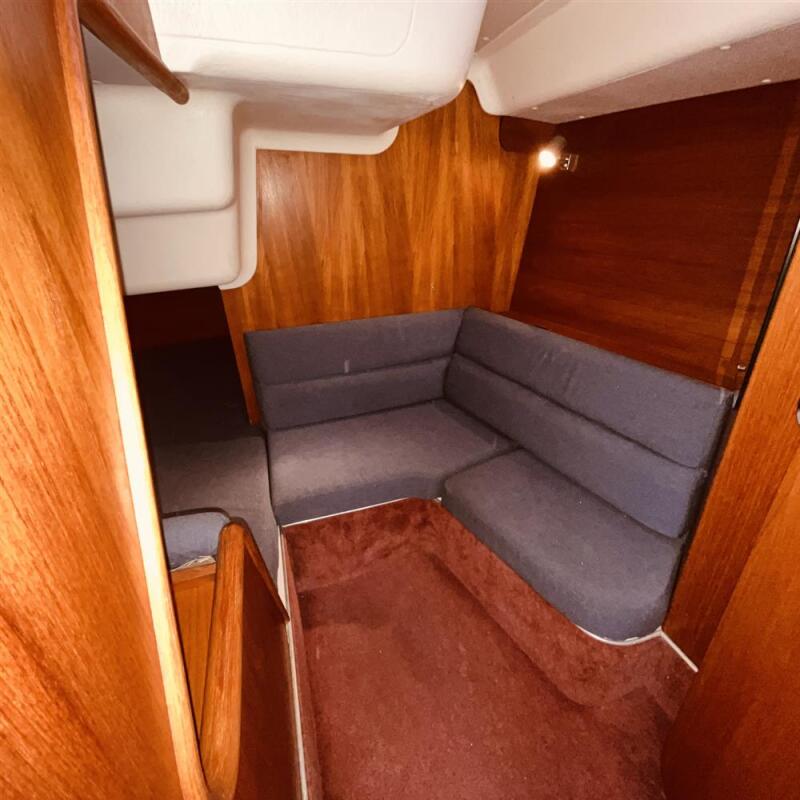

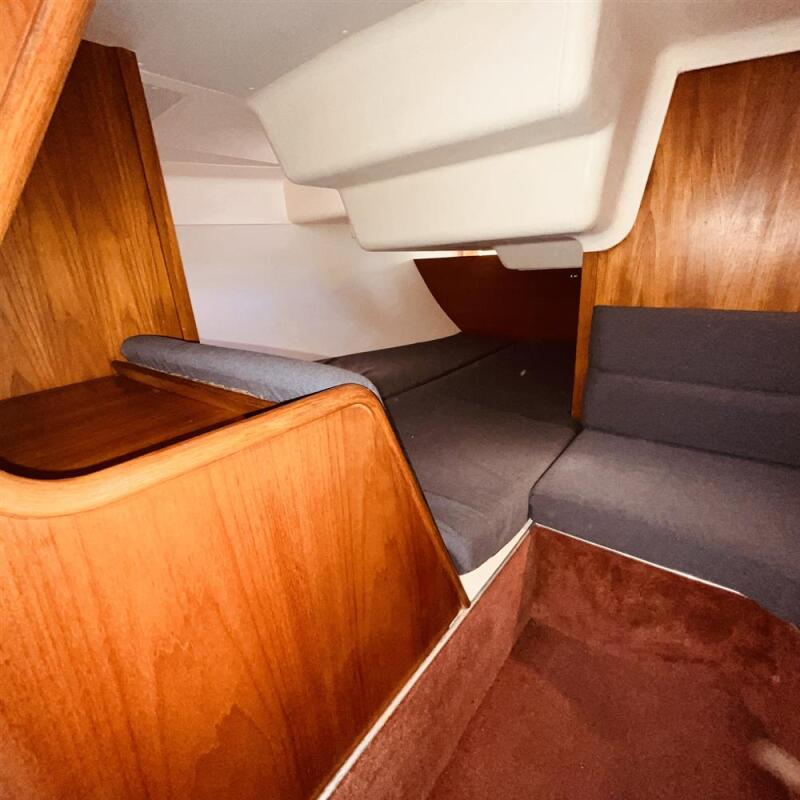

Aft Cabin: Once again, the M336 was class leading in the aft cabin that the design offered. A generous double berth runs for’ and aft to starboard side of and beneath the cockpit’s well, behind the engine space, accessed from a footwell to the port side of the vessel. The amount of space enabled some seating to be provided, while the relatively long footwell is located beneath the aft end of the coachroof and thereby enjoys good headroom above much of its length. A deep hanging locker is fitted behind the access door. A fixed mirror is fitted to the aftmost side of the hanging locker. An opening portlight to the starboard side of the cockpit’s well combines with a fixed port to the transom and another, overhead hatch above the footwell to provide light and ventilation.
Mechanical and Electrical Systems
Engine:

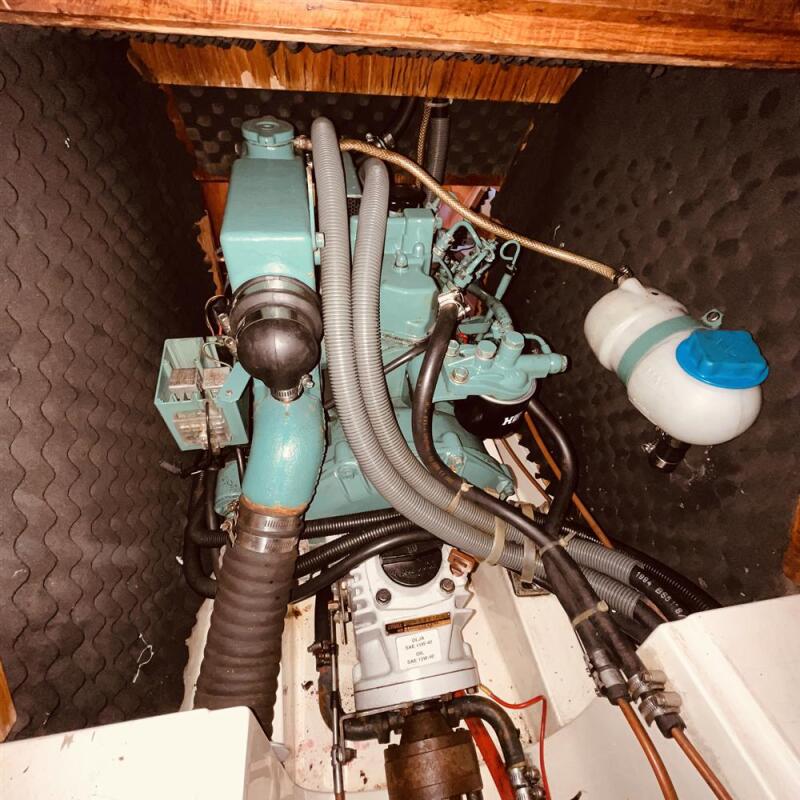

Volvo Penta MD2030 28hp 3-cylinder, indirectly cooled diesel engine
Conventional shaft drive with a PSS ‘drip less’ shaft seal (fitted in 2019) to a 3-bladed Kiwi feathering propeller.
Electrical:
2 X 12v 105ah batteries (2024) for domestic services and engine starting.
240v shore power connection with immersion heater, battery charger and 13A outlet sockets.

Spars and Rigging

An aluminium alloy double spreader mast by Seldén (badged as a Kemp Mast) with a later, single line slab reefing boom also by Seldén. The standing rigging was replaced in 2021
Seldén gas rod kicker,
Seldén Furlex 204s headsail furling system (new in 2016 with forestay)
All lines led aft to coachroof winches via Lewmar rope clutches.
Mainsail stackpack cover with lazyjacks (new in 2019).
Sails:
The main, working sails (mainsail and genoa) have been removed, delivered to a local sailmaker for checking, valeting and repair as necessary on an annual basis for the last five years.
Fully battened mainsail by Channon sails in 2009.
Roller furling Genoa (Westaway 2005).
Working Jib.
Cruising Chute with snuffer (Kemp 2001)
Navigation Equipment

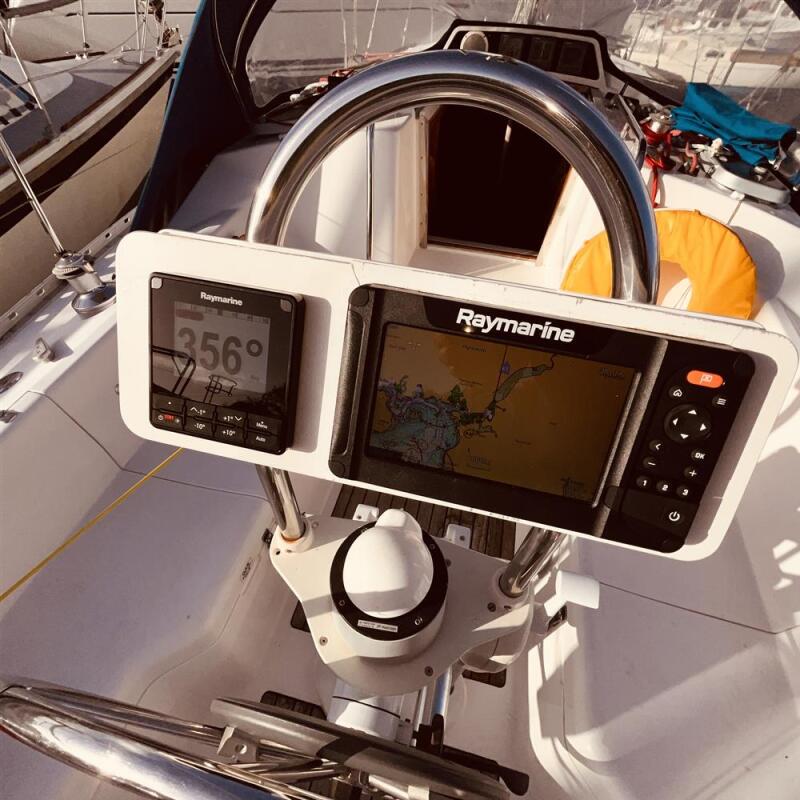

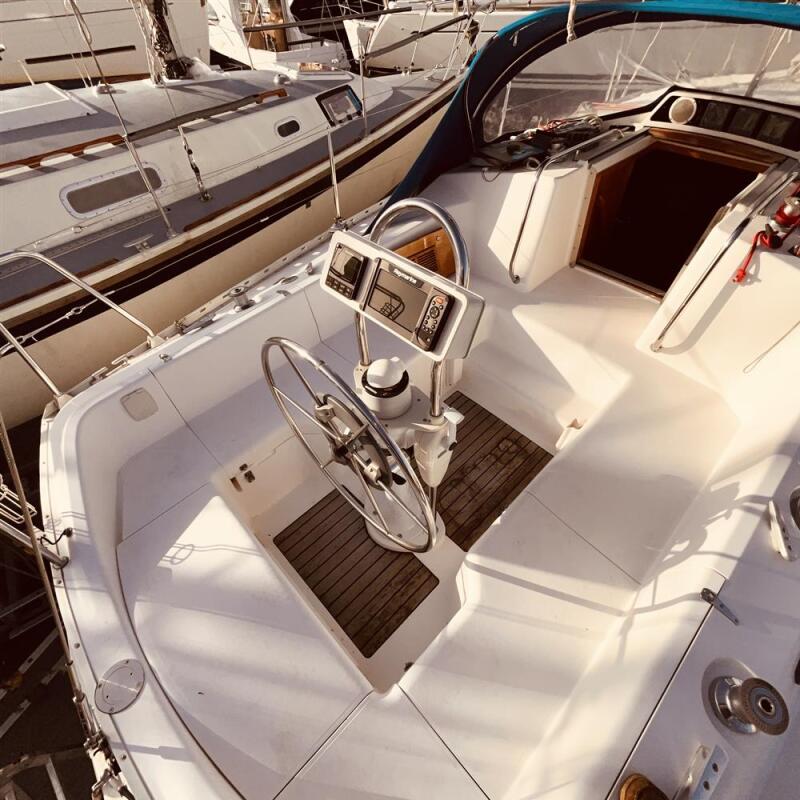

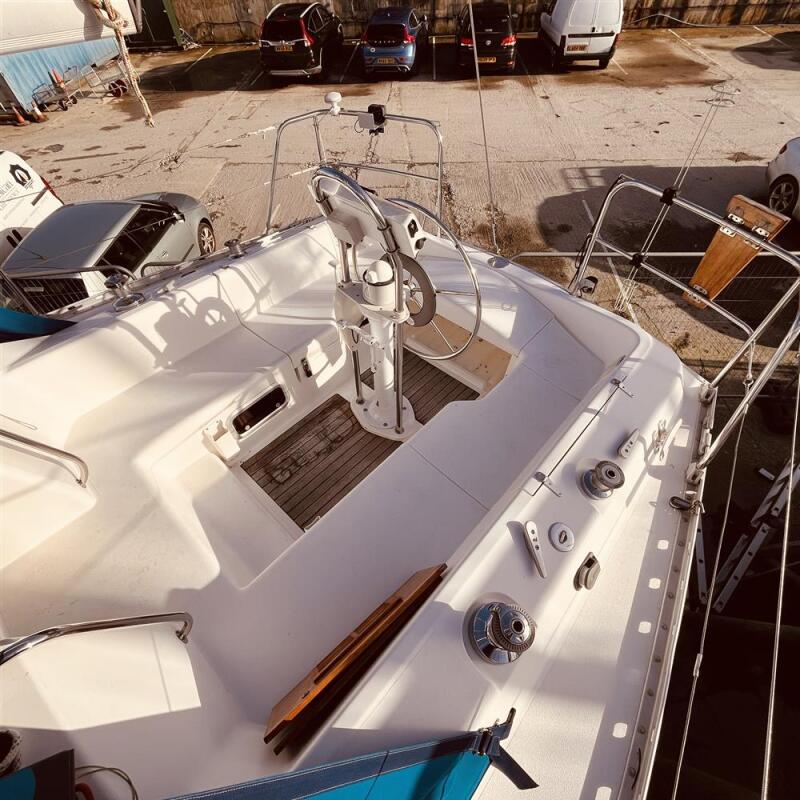

Cockpit instruments, at the wheel:
Raymarine i70 Autopilot control (2024)
Raymarine Element chart plotter (2022)
Raymarine command mic VHF handset (2024)
At companionway:
Raymarine ST60+ Depth display.
Raymarine ST60+ Speed/SOG display.
Raymarine ST60+ Wind speed & direction display.
At chart table:
Raymarine Ray63 fixed DSC/VHF Radio (2024).
Autohelm ST50 Multi display - repeating the wind/depth/speed information.
Deck Equipment
Plough anchor with chain.

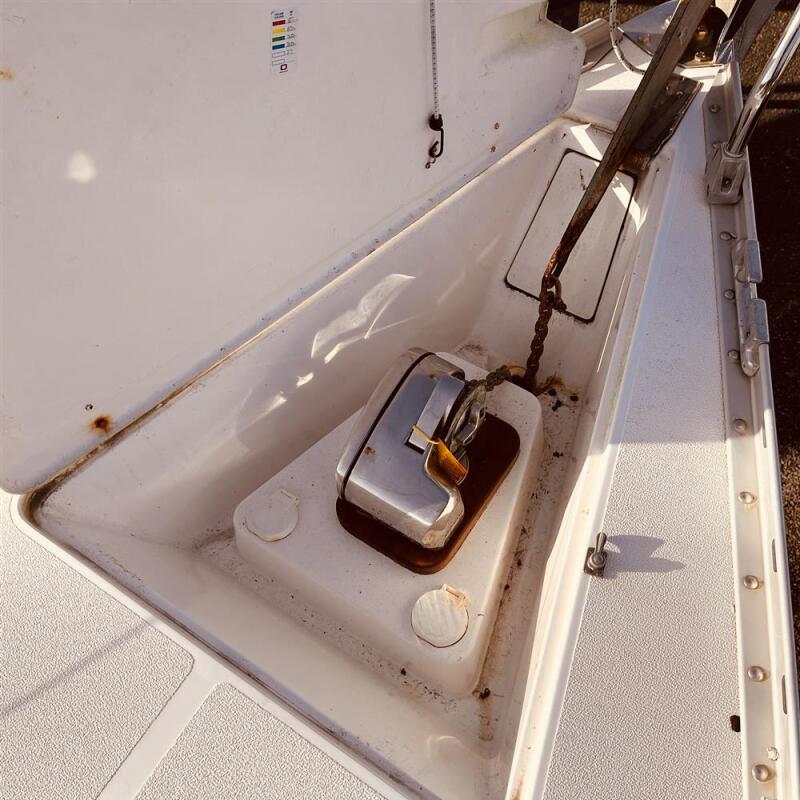

Lewmar electric anchor windlass (2020) with Winchmax remote control.

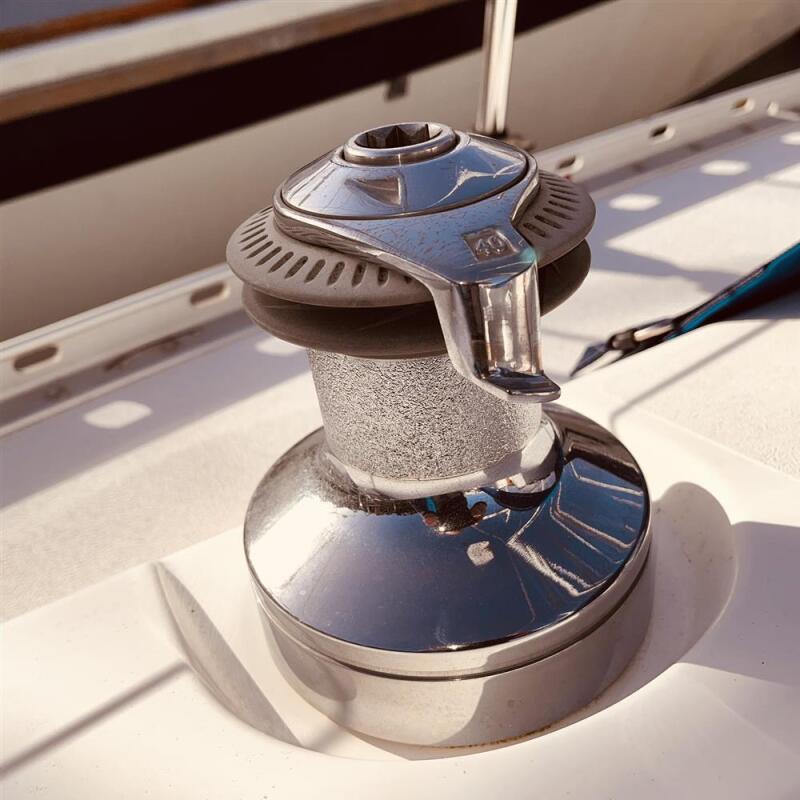

2 x Lewmar 40 self-tailing primary sheet winches.
2 x Lewmar 8 single speed halyard winches on coachroof
2 x Lewmar 8 single speed spinnaker sheet winches
1 x Lewmar size 8 winch on mast.
Tri-colour masthead light and all round white (anchor) light with LED bulbs.

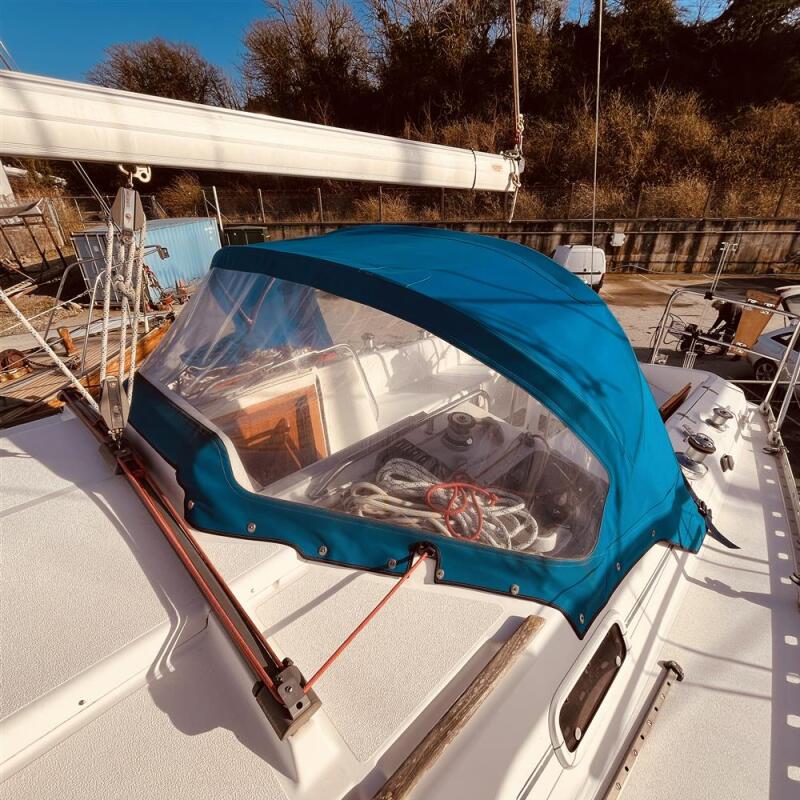

Recent (2023) sprayhood by Octagon Covers of Plymouth.
Matching pedestal and wheel covers.
Set of matching winch covers.
Set of simple cockpit cushions.
Folding cockpit table by Whitlock.
Minimum of 6 cylindrical fenders.
Minimum of 4 mooring ropes.
Outboard engine storage bracket on stern rail.
2 off 4.4 kgs Calor gas canisters.
Hinged swimming ladder, supplemented by two fixed rungs to transom.
Safety Equipment
Modern, Ray63 GMDSS & DSC-capable VHF radio with remote command mic. in cockpit.
4 person life raft in a valise (next service date due May 2025), but regularly stored within the accommodation.
‘Pilot’ gas alarm.
3 off 1 kg dry powder fire extinguishers out of guarantee date.
Cockpit mounted, manual bilge pump.
12vDC electric bilge pump with automatic and manual switches.
Horseshoe lifebuoy.
Gillie Firth mast-mounted radar reflector
Carbon monoxide gas alarm.
General note on safety equipment: Any safety equipment such as Liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
